5kw Victron Multiplus ll Inverter

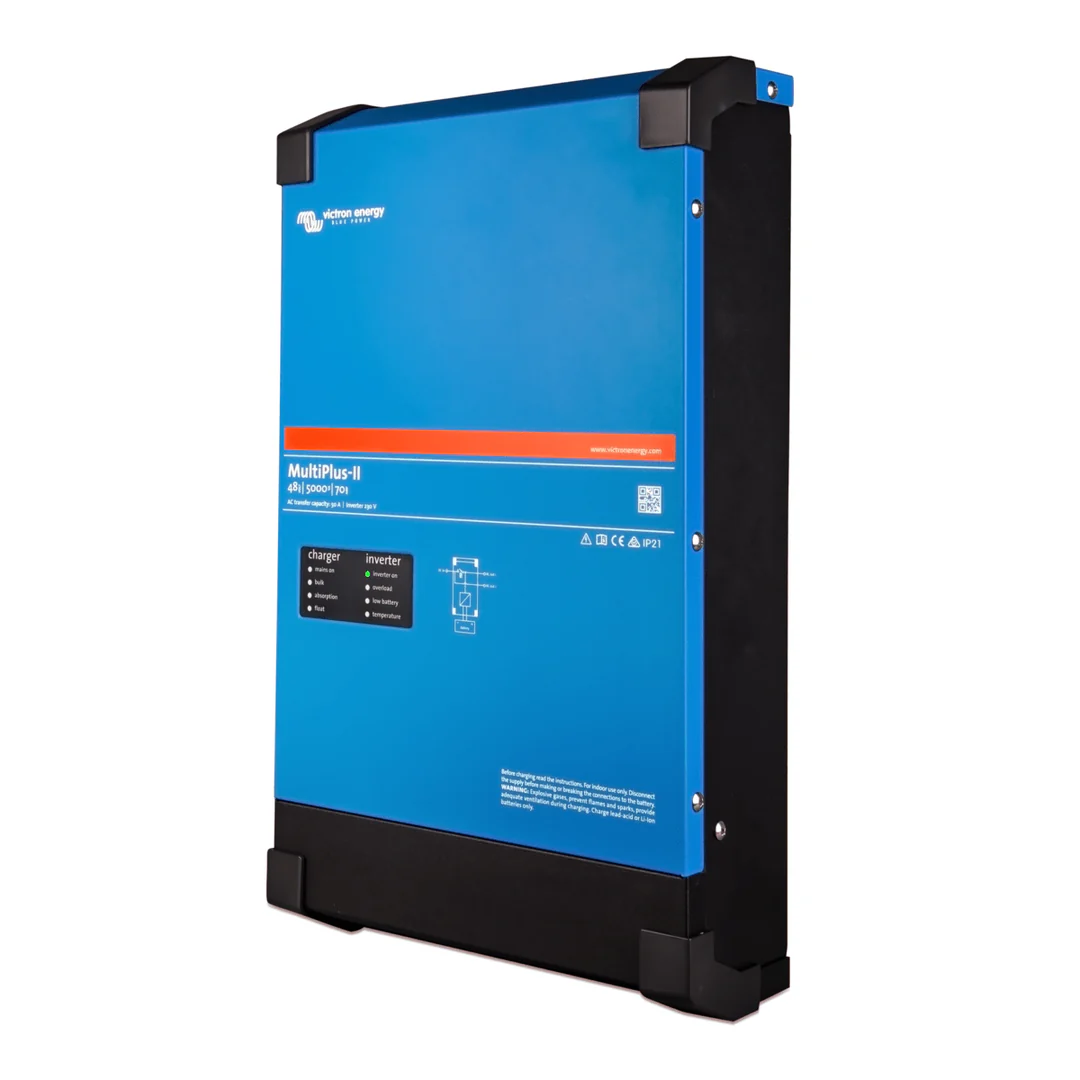

⚡ Victron MultiPlus II 5kW Inverter | 48V | Pure Sine Wave | MPPT | Hybrid Solar Inverter

Brand: Victron Energy
Model: MultiPlus II 5kW 48V
Rated Power: 5,000W (5kW)
System Voltage: 48V
Phase: Single Phase
Warranty: 5-Year Manufacturer Warranty (Extendable)
Availability: In Stock

---

🔋 High-Performance Hybrid Inverter for Residential & Small Commercial Applications

The Victron MultiPlus II 5kW 48V Inverter is a reliable, high-efficiency hybrid inverter designed for both grid-tiedand off-grid applications. Combining a pure sine wave output, MPPT solar charging capabilities, and a 48V battery system, this inverter offers optimal performance for both solar energy production and battery storage. It seamlessly provides backup power and is perfect for residential homes, small businesses, and energy storage systems.

---

✅ Key Features:

• ✔️ 5,000W (5kW) Pure Sine Wave Output – Ideal for residential homes, small businesses, and backup power solutions

• ☀️ MPPT Solar Charging – Efficiently manages solar energy from your panels to maximize energy production

• 🔋 48V Battery Compatibility – Works with a wide range of lithium-ion, AGM, and gel batteries

• 🔄 Grid-Tie & Off-Grid Ready – Suitable for grid-connected or off-grid installations

• 📱 Advanced Monitoring – Monitor performance remotely through VE.Direct, Bluetooth, or optional Victron Remote Monitoring

• 🛡️ Comprehensive Protection – Built-in overload, short-circuit, and temperature protection for enhanced safety and durability

• 💡 Seamless Backup Power – Automatically switches to battery power during grid failures for uninterrupted power

---

🌞 Solar PV Input:

• Max Solar Power Input: 6,000W

• MPPT Voltage Range: 120V – 400VDC

• Max PV Voltage: 450VDC

• Number of MPPTs: 1

• Max Input Current per MPPT: 12A

---

⚡ AC Output (Single Phase):

• Rated Output Power: 5,000W

• Output Voltage: 230VAC

• Frequency: 50/60Hz (Auto-detect)

• Surge Power: Up to 7,500W

• Power Factor: >0.99

• Max Efficiency: 96%

---

🔋 Battery Compatibility:

• Battery Voltage Range: 48VDC

• Max Charge/Discharge Current: 100A

• Supported Battery Types:

  • Lithium-ion (via BMS)

  • AGM / GEL (Lead-Acid)

• Programmable Charge/Discharge Settings

---

📐 Product Specifications:

• Dimensions: 350mm (W) x 210mm (H) x 130mm (D)

• Weight: Approx. 16 kg

• Cooling Method: Intelligent Fan Cooling

• Protection Rating: IP21 (Indoor use only)

• Operating Temperature: -20°C to 60°C

• Communication Ports: VE.Direct, Bluetooth (Optional), CAN-bus

---

📦 What’s in the Box?

• 1 × Victron MultiPlus II 5kW Inverter

• 1 × User Manual & Quick Start Guide

• 1 × Remote Monitoring Cable

• 1 × VE.Direct Cable (Bluetooth dongle sold separately)

---

🏠 Perfect For:

• Residential Solar Power Systems

• Small Commercial Solar Installations

• Backup Power Solutions

• Off-Grid Solar Systems

• Grid-Tied Solar Power Systems

• Flexible Energy Storage Solutions

---

📣 Installers & Distributors – Get Exclusive Trade Pricing!

Are you a certified solar installer or distributor? Contact us for special B2B pricing and support!
👉 Partner with Victron Energy for business growth and gain access to exclusive offers, training, and resources.
