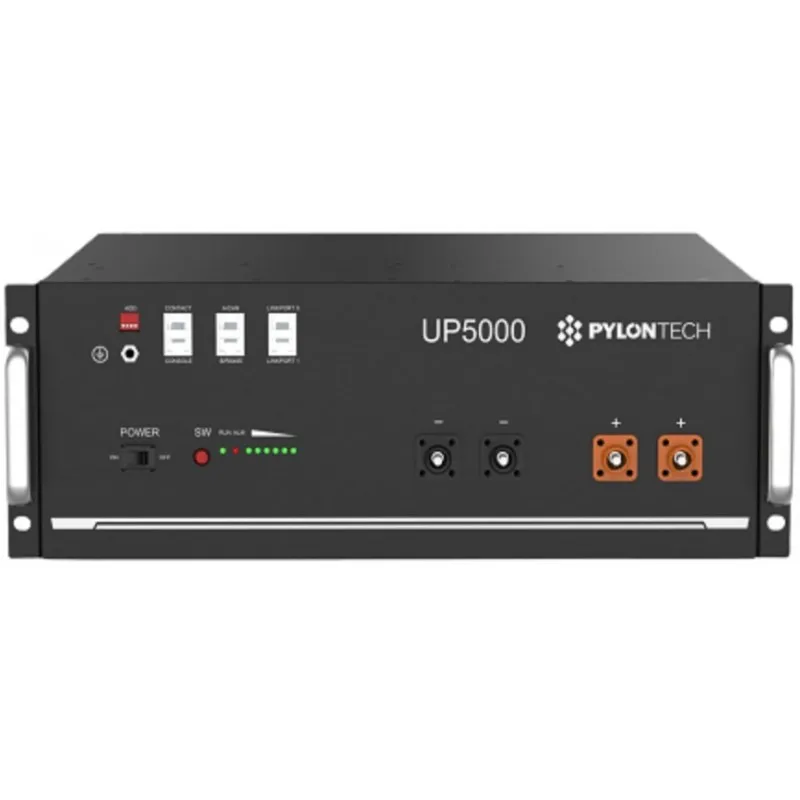

Pylontech UP5000 100Ah 4.8kWh 48V Li-Ion Battery

🔋 Pylontech UP5000 100Ah 4.8kWh 48V Li-Ion Battery

---

⚡ Key Features

Disclaimer: SunVault Energy is an independent solar equipment reseller and is not affiliated with the manufacturer or brand unless otherwise stated

✅ 4.8kWh usable energy per battery
✅ 48V system – ideal for modern solar inverters
✅ LiFePO₄ chemistry – safest lithium tech available
✅ >6000 cycles @ 80% DoD – ultra-long life
✅ Modular & stackable – supports up to 16 units in parallel
✅ 100% Depth of Discharge (DoD) – maximum usage
✅ Integrated Battery Management System (BMS)
✅ Compact rack-mount design for easy installation

---

📐 Specifications

• Battery Type: Lithium Iron Phosphate (LiFePO₄)

• Nominal Voltage: 48V

• Nominal Capacity: 100Ah

• Usable Energy: 4.56kWh

• Max Discharge Power: 5.12kW

• Efficiency: >95% round-trip

• Cycle Life: >6000 cycles @ 80% DoD

• Parallel Support: Up to 16 units

• Communication: RS485 / CAN

• Dimensions: 442mm × 420mm × 161mm

• Weight: 38kg

• Mounting Type: Rack or floor mount

---

🔗 System Compatibility

🔌 Compatible with leading inverter brands like Victron, Sunsynk, Growatt, LuxPower, and more
🔋 Expandable for larger systems — suitable for homes, offices, and small commercial setups

---

📦 What’s in the Box

• 1 x Pylontech UP5000 4.8kWh Battery

• 1 x Set of Power & Communication Cables

• 1 x User Manual

---

🛡️ Warranty

✔️ 7-Year Manufacturer Warranty
🛠️ Extendable up to 10 years with proper installation
⚠️ Installation must be done by a qualified installer to maintain warranty coverage

---
